Special nest swing joint

Special nest swing joint

Product code: ABC-200637

Product features:

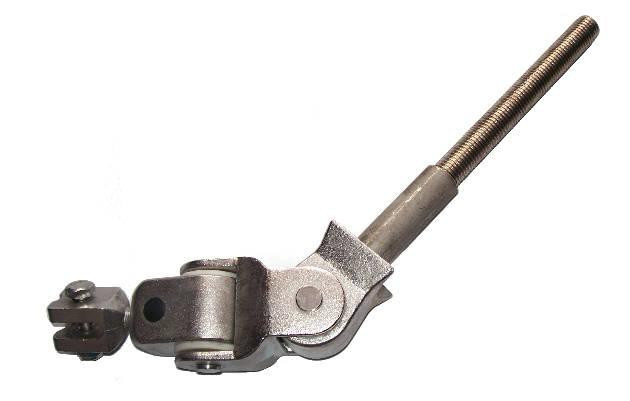

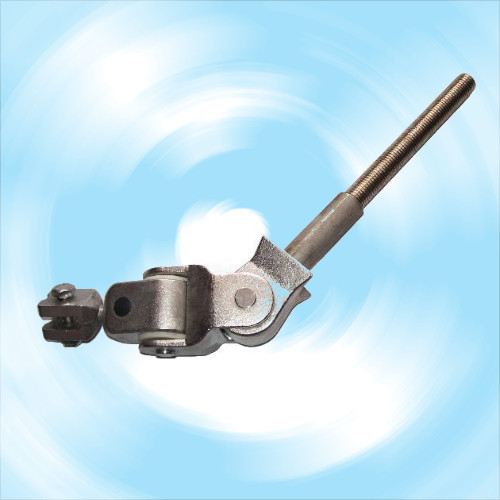

The design of the swing joint allows it to be used with square, round or log-type wooden beams, because by drilling through the wooden beam with the oval rim, you can easily adjust the direction of the swing so that it does not move later. The stem of the swing joint is 200 mm, with a 130 mm long thread, so it can be safely mounted on wooden beams of different thicknesses.

We recommend it for public areas, kindergartens, schools and private gardens.

< strong>Used materials, structural design:

The metal parts of the swing joint are completely galvanized, so they do not rust. By greasing the plastic sliding pad, we can achieve easy sliding and require little maintenance. The stem of the swing joint is 200 mm long, with a 130 mm threaded part at the end. The smooth swing is ensured by two joints and a rotating part. With the oval plate above the joint, you can easily and precisely adjust the swing direction of the swing joint. All our swings can be easily connected to the lower U-shaped part of the swing joint with the M8 screw and self-locking nut.

The product complies with EN 1176-1:2018, EN 1176-2:2018 and playground has a certificate of conformity.
