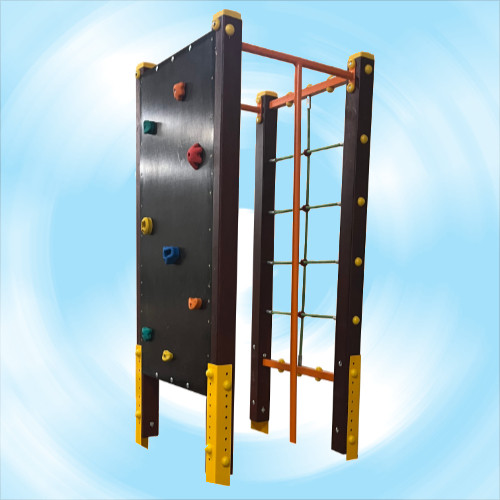

Four-function climbing tower

Four-function climbing tower

Product code: ABC-1234

Product features:

On one side of the climbing tower there is a climbing net made of 16 mm thick steel rope, the and on the opposite side, a climbing wall was created from holding elements of different shapes and sizes. On the other two opposite sides, there is a six-level, 28 cm spaced ladder for older children, and on the fire pole on the other side, smaller children can practice pole climbing.

The product complies with MSZ EN 1176- 7:2018 standard points and has a playground compliance certificate.

Materials used, construction: The support leg is an edge-bent, powder-coated carbon steel plate, it is fixed to the wooden structure, which ensures that the wood does not come into direct contact with a buffer. with the soil, thereby preventing rotting. They are connected to the wooden posts with a minimum of 4 long steel screws. Primed and colored powder coated. Powder coating is the most modern environmentally friendly surface treatment process in corrosion protection. The fire extinguisher rod and extension rod are also made of powder-coated steel tube.

Wooden parts: Pine layer glued beam, visible quality. It is made of technically dried, longitudinally spliced ​​- glued pine, and defects that reduce strength and optical imperfections are eliminated. It complies with the DIN EN 14080:2013 standard with the elimination of weak points and the layered design. Its strength value is GL24h. Board material AB quality, does not contain falling out or black lumps. It is planed, polished on all sides, free of burrs and has a rounded edge. The surface treatment is environmentally friendly and provides protection against the elements. UV-resistant, treated with two layers of water-based thick glaze and a natural anti-fungal agent.

The climbing wall is made of waterproof plywood with special synthetic resin holding elements.

Rope net: Vandál secure, twisted steel insert , it is made of polyethylene-coated, UV-resistant safety rope and plastic rope knots.

Installation: The toy is fixed with concrete on the metal support legs with a surface treated with colored powder coating. When preparing the concrete block, make sure to finish concreting at least 20 cm below ground level. After the concrete has solidified (concrete setting time is at least 10-15 days, depending on the weather), the toy can be used safely. )
Falling space: 24.7 m2
