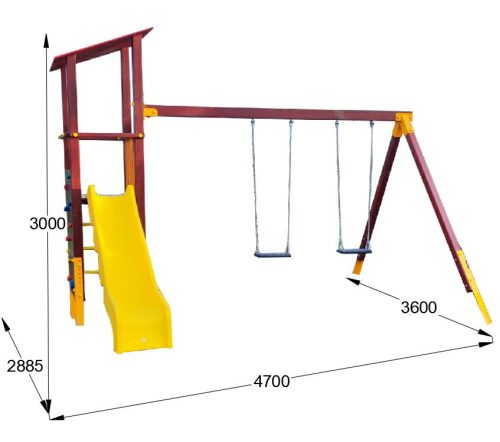

Golyavár with a swing

Product features: This castle is a good choice for playgrounds where you want to fit a slide and swing in a small space. In addition to the traditional climbing ladder, the ascent to the slide tower was supplemented with a climbing stone wall, so the castle also got a climbing function, which provides an extra experience for the children. This rock climbing wall greatly increases the children's skill, as everyone can find a climbing hold placed according to their age and ability, so they will be able to climb the tower faster and faster step by step. A slide awaits children on the opposite side of the ladder. The slide has high strength, is colored in material, has double side walls, and is maintenance-free. The use of the toy is recommended for children aged 3-14. The two swings fixed to the side wall of the tower can be freely varied to install a cradle swing or flat swing recommended for smaller children

The product complies with MSZ EN 1176-1:2018, MSZ EN 1176-2:2017+AC and MSZ EN 1176 -3:2018 for standard points

Used materials, structural design:

The support leg is an edge-bent powder-painted carbon steel plate, it is fixed to the wooden structure, which ensures that the wood does not come into contact with a stop directly with the soil, thereby preventing rotting. They are connected to the wooden posts with a minimum of 4 long steel screws. Primed and colored powder coated. Powder coating is the most modern environmentally friendly surface treatment process for corrosion protection.

Wooden parts: Pine laminated beam, visible quality. It is made of technically dried, longitudinally spliced ​​- glued pine, and defects that reduce strength and optical deficiencies are eliminated. It complies with the DIN EN 14080:2013 standard with the elimination of weak points and the layered design. Its strength value is GL24h. Board material AB quality, does not contain falling out or black lumps. It is planed, polished on all sides, free of fibers and has a rounded edge.

The surface treatment is environmentally friendly and provides protection against the elements. UV-resistant, treated with two layers of water-based thick glaze and a natural anti-fungal agent.

Sheet made of thick plastic colored in the roof material, so it is completely maintenance-free and resistant to weather conditions.

The slide has double side walls, is durable, colored throughout its thickness, and withstands weather conditions well. Its sliding surface is longitudinally ribbed, which ensures better sliding and stiffens the slide body. It is made entirely of colored HDPE plastic, so it retains its colors even when worn.

All screws are protected by a rounded plastic cover that cannot be disassembled without tools.

Installation: Fixing the toy with colored powder coating. it is done by concreting surface-treated metal support legs. When preparing the concrete block, make sure to finish concreting at least 20 cm below ground level. After the concrete has solidified (concrete setting time is at least 10-15 days, depending on the weather), the toy can be used safely.

Drop height: 120 cm

Drop area: 45.5 m2
