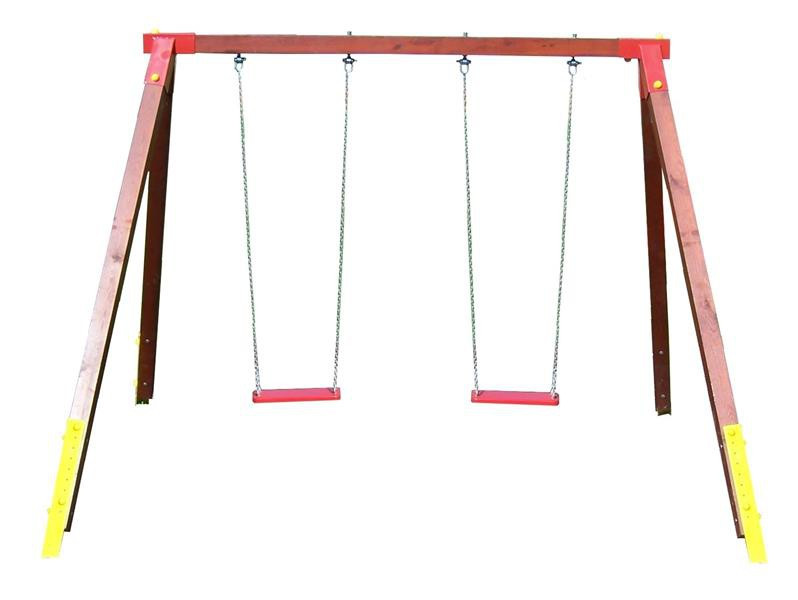

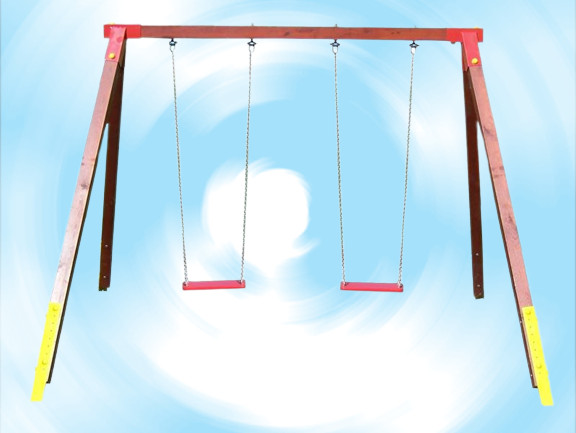

Two-seater swing with folding seats

Two-seat swing with fold-down

Product code: ABC-1210/2

Product features:

Length of upper horizontal support beam: 2550 mm

Length of the wooden part of the support legs: 2350 mm

The product complies with the MSZ EN 1176-1:2018 and MSZ EN 1176-2:2017 AC standards.

Used materials, structural design :

The support leg is an edge-bent, powder-coated carbon steel plate, fixed to the wooden structure, which ensures that the wood does not come into direct contact with the ground, thereby preventing rotting. They are connected to the wooden posts with a minimum of 4 long steel screws. Primed and colored powder coated. Powder coating is the most modern environmentally friendly surface treatment process for corrosion protection.

Wooden parts: Pine laminated beam, visible quality. It is made of technically dried, longitudinally spliced ​​- glued pine, and defects that reduce strength and optical deficiencies are eliminated. It complies with the DIN EN 14080:2013 standard with the elimination of weak points and the layered design. Its strength value is GL24h. Board material AB quality, does not contain falling out or black lumps. It is planed, polished on all sides, free of fibers and has a rounded edge.

The surface treatment is environmentally friendly and provides protection against the elements. UV-resistant, treated with two layers of water-based thick glaze and a natural anti-fungal agent.

The aluminum seat of the swing seat is surrounded by a flexible rubber covering, so the seat surface of the swing has a warm touch, and the risk of injury to other children during the swing of the swing is also minimal. looking at. The chain holding the swing seat is made of electrogalvanized steel with a material thickness of 5 mm, the size of the chain links is determined in such a way that the chain cannot pinch the child's hand while swinging. they rust. By greasing the plastic sliding pad, we can achieve easy sliding and it requires little maintenance.

Vandal-proof design, requires a special tool to remove it.

Installation:

Fixing the toy it is done by concreting the metal support legs, surface treated with colored powder coating. When preparing the concrete block, make sure to finish concreting at least 20 cm below ground level. After the concrete has hardened (concrete setting time is at least 10-15 days, depending on the weather), the toy can be used safely.

Drop height: 120 cm
Drop area: 22 m2
